Truck Kits

BOLT ON DISC BRAKE KITS FOR

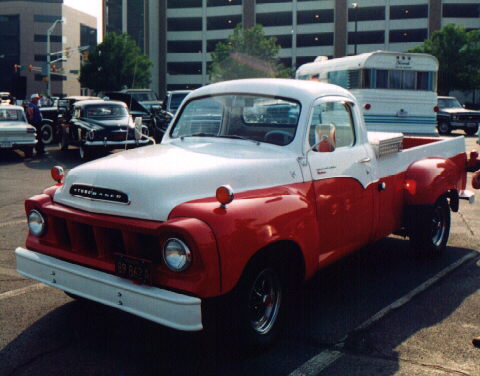

Studebaker Pick Up Trucks 1941-1964

Bolt on Disc brake kits using modern General Motors calipers and rotors!

NO SPINDLE MODIFICATION NECESSARY!

About The Turner Brake Truck Kits :

Use your stock Studebaker spindles! Stock Studebaker car wheel bearings, and dust caps.

It may be necessary to use G.M. wheels with this kit!

Use the General Motors calipers, brake pads, hoses, rotors, and grease seals.

The TURNER BRAKE Economy Kit includes: All necessary custom-made brackets, all the necessary grade 8 bolts, lock-washers and locknuts, to install your calipers and rotors on your Studebaker pickup truck.

Shop Truck Kits:

Deluxe Front 1/2 Ton Truck Kit

$599.95

Includes: new rotors, new pads, new grease seals, new bearings, fresh NEW brake hoses, rebuilt loaded calipers and all the brackets and necessary hardware to complete the installation of this kit.

It may be necessary to use G.M. wheels with this kit! G.M/Studebaker bolt pattern is 5x5

DELUXE TRUCK KIT PACKING LIST:

1 - LEFT CALIPER BRACKET

1 - RIGHT CALIPER BRACKET

8 - 3/8 X l 3/4 GRADE 8 HEX HEAD BOLTS*

8 - 3/8 LOCK WASHERS

4 - 14 X 35 MM GRADE 8 BOLTS

4 - 14 MM LOCK WASHERS

8 - 14 MM WASHERS

8 - 3/8 GRADE 8 LOCK.NUTS*

2 - GREASE SEAL TRACK ADAPTERS

2 - NEW ROTORS WITH BEARINGS AND SEALS (5x5 BOLT PATTERN)

2 - SPINDLE NUTS

2 - SPINDLE NUT RETAINERS

2 - COTTER PINS

1 - REBUILT CHRYSLER LOADED LEFT CALIPER

1 - REBUILT CHRYSLER LOADED RIGHT CALIPER

1 - 10# RESIDUAL CHECK VALVE

1 - SET DRAKE HOSES

1 - SET COMPLETE INSTRUCTIONS

Note: Even though lock washers are provided in this Brake Kit, we highly recommend the use of Red Loctite on all bolts!

Quantity

Backside View Rear Disc for Half Ton Trucks

Deluxe Rear 1/2 Ton Truck Kit

$799.95

Available in Complete Kits Only

NOW AVAILABLE Rear Disc Brakes for the Studebaker Half Ton Pick-ups!

Use your stock HUB (some machine work is required) Once the machine work is done, this is a bolt on kit. This kit is available in a complete kit only.

Quantity

Coupe Express Deluxe Front Disc Brake Kit

$699.95

Available in Complete Kits Only.

These kits will require additional machine work to reduce the outside diameter of the stock hub. They will also need to be re-drilled for the included studs to work. We have dedicated a lot of time and resources to make this kit possible.

This kit will be retailed for $699.95 Plus the machine work needed. We have found a modern caliper and rotor that works perfectly with the modified hub!

NOW AVAILABLE

Please call us directly to order your kit!

Quantity

Deluxe Front 3/4 Ton Truck Kit 8 Lug Pattern

$799.95

Available in Complete Kits Only

3/4 Ton Deluxe Front brake kits 8 Lug Pattern. You MUST send your Wheel Bearing Races to us, and we will install them. No Modern Rotor does NOT have the Correct Wheel Bearings that will fit the Studebaker. We have had a sleeve machined to accept the Studebaker Races. 6 bolt Pattern is $799.95

Quantity

Deluxe Front 3/4 Ton Truck Kit 6 Bolt Lug Pattern

$899.95

Available in Complete Kits Only

3/4 Ton Deluxe Front brake kits 6 Lug Pattern. You MUST send your Wheel Bearing Races to us, and we will install them. No Modern Rotor does NOT have the Correct Wheel Bearings that will fit the Studebaker. We have had a sleeve machined to accept the Studebaker Races.

Quantity

Economy Front 1/2 Ton Truck Kit

$299.95

Available for the 1/2 Ton Only

BOLT ON DISC BRAKE KITS FOR Studebaker Pickup Trucks 1941-1964

Bolt on Disc brake kits using modern General Motors calipers and rotors.

ECONOMY TRUCK KIT PACKING LIST:

Which includes: all necessary brackets, hardware and residual check valve, to install your own calipers and rotors.

1 - LEFT CALIPER BRACKET

1 - RIGHT CALIPER BRACKET

8 - 3/8 X 1 3/4 GRADE 8 HEX HEAD BOLTS*

8 - 3/8 LOCK WASHERS

8 - 3/8 GRADE 8 LOCKNUTS

2 - GREASE SEAL TRACK ADAPTERS

4 - 14 X 35 MM GRADE 8 BOLTS

4 - 14 MM LACK WASHERS

8 - 14 MM WASHERS

1 - 10# RESIDUAL CHECK VALVE

2 - SPINDLE WASHERS

2 - SPINDLE NUT RETAINERS

2 - COTTER PINS

1 - SET COMPLETE INSTRUCTIONS

Note: Even though lock washers are provided in this Brake Kit, we highly recommend the use of Red Loctite on all bolts!

Quantity

Truck Kit Instructions

To ensure the safe and proper installation of your kits and parts, it is crucial to review the detailed instructions provided. Please take the time to read through the instructions thoroughly before beginning the installation process.

Read Truck Instructions
